Thinking in Graphs with IPAHound

At PT SWARM, we increasingly encounter infrastructures built on alternative implementations of Microsoft Active Directory. One such alternative that has rightfully received widespread adoption is FreeIPA.

I specialize in hunting for vulnerabilities in Linux infrastructures and developing red team tools. I have spoken twice at OFFZONE, where I broke down attacks against FreeIPA.

Our team has experience in finding 0-day vulnerabilities in FreeIPA and its components:

1. CVE-2022-2414. An XXE vulnerability in the FreeIPA PKI HTTP server that allows an attacker to read files on the server. The vulnerability received a CVSS score of 7.5. Discovered by Egor Dimitrenko.
2. CVE-2024-1481. A vulnerability leading to a DoS attack via HTTP requests. CVSS score: 5.3. Discovered by Mikhail Sukhov.
3. CVE-2024-3183. A vulnerability that allows attackers to obtain TGS tickets for arbitrary users. CVSS score: 8.1. Discovered by Mikhail Sukhov.
4. CVE-2024-3657. A vulnerability resulting in a DoS attack on the LDAP server via a specially crafted packet. CVSS score: 7.5. Discovered by Mikhail Sukhov.
5. CVE-2025-4404. A privilege escalation vulnerability allowing a regular account to gain administrator rights in FreeIPA. CVSS score: 9.1. Discovered by Mikhail Sukhov.

However, our expertise extends beyond simply finding vulnerabilities. While working with FreeIPA, we also explored its architecture.

This led to the creation of IPAHound, our equivalent of BloodHound. It is based on the BloodHound Legacy project with PKI support (https://github.com/ly4k/BloodHound).

IPAHound consists of two components: a collector and a GUI. The collector gathers information via LDAP and prepares it for uploading into GUI. The GUI then visualizes the data as a graph, making it easier to spot misconfigurations in the domain.

The motto “By pentesters, for pentesters” was not chosen by accident—we have successfully used this tool in our projects.

In this article, we will introduce our tool and explore various methods of analyzing relationships that facilitate lateral movement within FreeIPA.

Approaches to analyzing FreeIPA

The main difference between FreeIPA and AD is the limited available information. Regular users cannot see access rules, permissions, privileges, ACI rules, and much more. They are left to guess.

Because of this, there are two different approaches to analyzing the directory.

1. The audit approach: we have full access to the data (using an administrator account or cn=Directory Manager). The goal is to find as many misconfigurations as possible. Blue teams typically have these privileges.
2. The pentest approach: we only have access to the information available to a standard user.

Our tool is designed for the second scenario. It reconstructs the rights and privileges of domain objects based on the available information. Our methodology relies on lateral movement, data collection, and analysis.

Entities in FreeIPA

Let us look at the entities present in FreeIPA and how they are represented in IPAHound. The directory contains a fairly large number of objects. We will go from simple to complex and break down each one in detail.

The graph consists of vertices (nodes) and edges. Nodes have types and attributes containing information about the FreeIPA object, but custom attributes can also be generated to simplify analysis.

If you want to jump straight to nodes in IPAHound, skip to the IPAHound graph section.

For our examples, let us assume the domain FQDN is positive.ipa.

The Base DN would then be dc=positive,dc=ipa, and all FreeIPA objects reside within it.

The domain

There can only be one domain in the directory. The object is located at dc=positive,dc=ipa and has an objectClass of domain. The most critical attribute here is associatedDomain, which stores the domain name (positive.ipa). In our graph, the domain is assigned the IPADomain type.

Users

Objects are stored in cn=users,cn=accounts,dc=positive,dc=ipa and have several important characteristics.

Pay attention to the krbCanonicalName attribute, which stores the user’s Kerberos principal (similar to services and computers).

When full information is unavailable, the MemberOf attribute is useful. By default, a regular domain user cannot read objects in the directory (unlike in AD). By analyzing the value of this attribute, we can infer which groups the user belongs to, as well as their roles, permissions, and privileges. However, we cannot read the actual permissions and privileges—we have to guess their purpose based on their names.

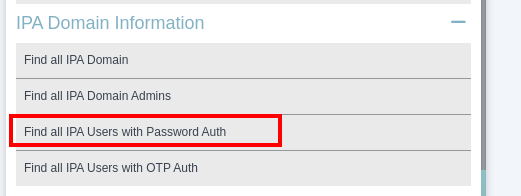

Another interesting attribute is ipaUserAuthType. FreeIPA supports various authentication methods beyond just passwords: RADIUS, password + OTP, PKINIT, hardened passwords (SPAKE or FAST), external identity providers, and passkeys. This attribute holds the list of allowed methods. If the attribute is missing, password authentication is assumed by default. Our collector checks this attribute right away and creates a PasswordAuthAllow field for the user, set to True or False.

In our graph, this object is assigned the IPAUser type.

Computers

Objects are stored in cn=computers,cn=accounts,dc=positive,dc=ipa. Things are pretty straightforward here; we have already covered krbCanonicalName and memberOf above. Additionally, there is an informative attribute: krbTicketFlags. It contains flags indicating the parameters and capabilities of the account (whether user, computer, or service) within the context of the Kerberos protocol. Let’s take a closer look at it. The most interesting flags are listed in the table below:

Flag	Value	Description
IPAKrbRequiresPreAuth	0x00000080	Useless for pentesting since service and computer passwords are inherently complex, and this flag does not apply to users
IPAKrbOkAsDelegate	0x00100000	Delegation allowed (trusted for delegation)
IPAKrbOkToAuthAsDelegate	0x00200000	S4U2self allowed (trusted to authenticate as user)

We are particularly interested in the IPAKrbOkAsDelegate and IPAKrbOkToAuthAsDelegate flags, as one enables unconstrained delegation and the other allows the use of S4U2self. These flags are set by default for domain controllers.

Based on the presence of the IPAKrbOkAsDelegate flag, we set the UnconstrainedDelegation attribute, which should be familiar to BloodHound users.

In our graph, this object is assigned the IPAComputer type.

Services

Services are stored in cn=services,cn=accounts,dc=positive,dc=ipa. In the FreeIPA architecture, they are represented as a distinct object type (which might be unusual for pentesters accustomed to Microsoft AD). These objects are used to separate computer accounts from service accounts. Passwords—or more accurately, Kerberos keys—for service accounts are complex and are not automatically changed, just like the keys for computer accounts.

In our graph, this object is assigned the IPAService type.

System accounts

Objects are stored in cn=sysaccounts,cn=etc,dc=positive,dc=ipa.

To wrap up with accounts, let us look at the most unusual ones: system accounts. Currently, developers use just one account—sudo. Its password might be stored in plaintext in the /etc/sudo-ldap.conf file on the domain computers. This account is only suitable for direct LDAP connection (using its full DN as the username); it does not exist in Kerberos.

Administrators can create system accounts. The figure below shows the creation of system accounts via the web interface.

System accounts are assigned the IPAUser type.

Groups

Objects are stored in cn=groups,cn=accounts,dc=positive,dc=ipa. Their purpose is obvious. Note that only users and services can be members of these groups. The difference from AD is that FreeIPA automatically resolves nested group members. For example, if we have user A, group B, and group C, and the edges are A -memberOf → B -memberOf → C, a transitive edge A → C is automatically created.

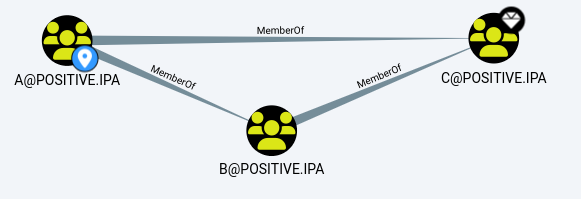

Even though user A is not a direct member of group C, the edge will be created and displayed on the graph.

The memberManager attribute in a group allows us to manage group membership (add and remove members). The AddMember edge is built based on this attribute.

 In our graph, this object is assigned the IPAGroup type.

Computer groups

Objects are stored in cn=hostgroups,cn=accounts,dc=positive,dc=ipa. The difference from regular groups is that computer groups can only contain computers; otherwise, they share the exact same functionality. To avoid introducing unnecessary entities, computer groups are also assigned the IPAGroup type.

Net groups

Objects are stored in cn=ng,cn=alt,dc=positive,dc=ipa. This is a special group that can contain both computers and users. Consequently, it was assigned the IPAGroup type, but with the Net Group prefix added for distinction.

Net groups were originally created to support NIS. They are no longer used for that purpose, but they still exist in the directory.

System groups

Objects are stored in cn=sysaccounts,cn=etc,dc=positive,dc=ipa. These are the default groups created in FreeIPA. There are only two:

1. Replication managers grant rights to manage replication relationships.
2. Adtrust agents grant rights to manage trust relationships with AD.

These groups are also assigned the IPAGroup type.

Permissions

Let us dive into how privileges and permissions work in FreeIPA, as this is the core mechanism for granting rights to users.

Objects are stored in cn=permissions,cn=pbac,dc=positive,dc=ipa.

A permission is a directory object that shapes an ACI rule so that it applies only to selected accounts, granting them specific rights. Let us find out how it works.

Attribute	Example value	Description
ipaPermLocation	cn=groups,cn=accounts,dc=positive,dc=ipa	The DN and child structures to which the permission applies
ipaPermRight	add	Granted rights. In this case, adding an entry to the directory
ipaPermTargetFilter	(|(objectclass=ipausergroup)(objectclass=posixgroup))	Filter specifying which objects can be added

The resulting ACI rule:

dn: cn=groups,cn=accounts,dc=positive,dc=ipa
aci: (targetfilter = "(|(objectclass=ipausergroup)(objectclass=posixgroup))")(version 3.0;acl "permission:System: Add Groups";allow (add) groupdn = "ldap:///cn=System: Add Groups,cn=permissions,cn=pbac,dc=positive,dc=ipa";)

According to the ACI rule, all accounts that are members of the permission can add groups.

Any user can see which permissions they are a member of. However, to see the actual rights granted by those permissions, the user must be a member of the System: Read Permissions group. It is normally granted only to privileged users. Without it, a user can only see the name and guess the underlying rights. The exceptions are 37 standard permissions; the rights they grant can be checked on a deployed domain, in the source code, or sometimes in the official documentation. This is exactly why we do not display ACI rules in IPAHound, as reading them requires high privileges.

Permissions are assigned the IPAPermission type.

Privileges

Objects are stored in cn=privileges,cn=pbac,dc=positive,dc=ipa.

Privileges are also groups, and they are members of permissions. Being a member of a privilege grants an account the right to use the permissions under that privilege. Since privileges are also groups, they are assigned the IPAGroup type.

Roles

Objects are stored in cn=roles,cn=accounts,dc=positive,dc=ipa.

Roles are also groups, but with a difference: a role is a member of permissions and privileges, meaning it inherits them. Services, computers, and users can be members of roles. Other than that, they do not differ from groups. Roles are assigned the IPARole type. Why did we create a separate type for them? In our experience, roles are most frequently used by administrators to delegate privileges and permissions, so we decided to separate them from other groups.

Nesting of roles, privileges, and permissions

Below is an illustration from IPAHound that will help is understand the differences between privileges, permissions, and roles.

However, in the directory, it looks like this:

Due to the transitive nature of group edges mentioned earlier, FreeIPA automatically creates secondary links between users/roles and permissions.

HBAC rules

Objects are stored in cn=hbac,dc=positive,dc=ipa.

A rule consists of several attributes: users, allowed local services, and computer accounts. This entity forms edges indicating which users can interact with local services on specific computers. Out of all services, sudo and sshd are the most interesting for lateral movement. In PT SWARM’s experience, other services are rarely used in real-world infrastructures.

To interact with the sshd service (SSH connection), we only need an allowing HBAC rule. To interact with the sudo service, an account needs:

1. An HBAC rule granting access to the required service (in our case, sudo services)
2. A separate sudo rule that will allow us to execute commands via sudo.

To simplify the graph and analysis, HBAC rules generate CanSSH edges by default. CanSUDO edges are only added if both conditions are met (the collector verifies this automatically).

Edges for other services can be added using the --save-all-hbac parameter in the collector. This will create Can* edges, where * is replaced by the name of the service or service group.

sudo rules

Objects are stored in cn=sudorules,cn=sudo,dc=positive,dc=ipa.

Just like with HBAC, computers and users can be members of a sudo rule group. FreeIPA offers highly flexible rule configuration: you can define parameters, command groups, and so on. All this is stored in attributes and structures of the directory.

Attribute	Example values	Description
cmdCategory	all or the DN path to commands	Commands the user is permitted to execute
ipaSudoOpt	!authenticate	sudo parameters. For example, !authenticate allows us to use sudo without a password
ipaSudoRunAs	uid=admin,cn=users,cn=accounts,dc=positive,dc=ipa	The user under which commands can be executed
memberAllowCmd		Allowed commands
memberDenyCmd		Forbidden commands

After these objects are processed, the CanSUDO edge is formed. Important: As mentioned earlier, an HBAC rule allowing the use of sudo is required; in IPAHound, this check runs automatically. To view all the attributes of an edge, you need to simply click on it. Below is an example of the CanSUDO edge with specific attributes.

SELinux rules

Objects are stored in cn=usermap,cn=selinux,dc=positive,dc=ipa.

Members of this entity are users and computers to which the SELinux policy applies.

A separate IPASELinux type was created for SELinux.

Kerberos delegation

FreeIPA offers several ways to configure delegation. We already mentioned unconstrained delegation when discussing computer attributes. We will discuss the other types of delegation in FreeIPA below.

Constrained delegation

To use S4U2proxy, permission must be granted.

Permission objects are stored in cn=s4u2proxy,cn=etc,dc=positive,dc=ipa.

The allowing record is defined by the objectClass attribute with the value ipaKrb5DelegationACL. An example attribute set is shown below.

Using the memberPrincipal attribute, you can view the list of accounts allowed to use S4U2proxy. Using the ipaAllowTarget you can see the links to lists of services for which Kerberos tickets can be obtained.

An example of the cn=ipa-ldap-delegation-targets,cn=s4u2proxy,cn=etc,dc=positive,dc=ipa list is shown below.

By parsing these entities, our collector forms the AllowedToDelegate edge.

A regular user does not have read permissions to read cn=s4u2proxy,cn=etc,dc=positive,dc=ipa.

RBCD (resource-based constrained delegation)

The MemberPrincipal attribute is responsible for RBCD, specifying who can use S4U2proxy for this host. The implementation mechanism for RBCD in FreeIPA is no different from AD.

The AllowedToDelegate edge is added based on this attribute.

Not every user can configure RBCD. To do so, the object must have the ipaAllowedToPerform;write_delegation attribute. This contains the DN of the account allowed to modify or add MemberPrincipal required to set up RBCD.

The AddRBCD edge is formed based on the value of ipaAllowedToPerform;write_delegation.

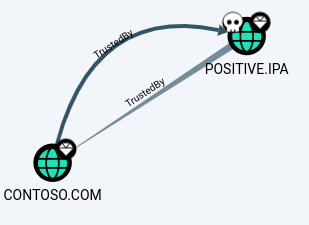

AD trust relationships

Objects are stored in cn=ad,cn=trusts,dc=positive,dc=ipa.

Currently, trusts can only be established with AD domains; you cannot set up a trust between two FreeIPA domains. You can download the AD domain information to analyze everything simultaneously. Based on the information from FreeIPA, the TrustedBy edge is created.

Users from another domain can be members of groups.

IPA PKI. Certification authority

Objects are stored in cn=cas,cn=ca,dc=positive,dc=ipa.

FreeIPA can have multiple certification authorities; this structure stores information about each of them.

The certification authority type is IPACA.

IPA PKI. Certificate profile

Objects are stored in cn=certprofiles,cn=ca,dc=positive,dc=ipa.

The profile defines constraints on the certificate name obtained via a request, the certificate type, and so on. Additionally, there are restrictions on which accounts can use the profile. These restrictions are managed by CA ACLs (to be discussed above).

A separate IPACertificateTemplate entity was created for certificate profiles.

IPA PKI. CA ACL

Objects are stored in cn=certprofiles,cn=ca,dc=positive,dc=ipa.

This is one of the most important entities in IPA PKI. Each CA ACL rule specifies which accounts can access which profiles.

Here is an example from the default settings.

Enroll edges are built based on CA ACL.

IPAHound graph

It is time to see what the graph generated via IPAHound looks like.

Nodes

Each node contains additional information. To view an object’s details, you need to click on the node of interest. The table summarizes key information about the nodes generated by the collector the differences between IPAHound and BloodHound.

Node type	Node name	Description	Name in BloodHound	Difference from BloodHound
IPADomain	Domain	Domain object containing the FQDN domain	Domain	FreeIPA’s architecture does not grant access to all directory information by default. Therefore, in IPAHound, DCSync and ACL edges are constructed based on default rules.
IPAUser	User	Domain users and system accounts	User	User attributes specify: Public SSH keys and certificates available authentication methods Hosts available for connection via SSH
IPAGroup	Groups	Groups, permissions, computer groups, system groups, and netgroups	Group	FreeIPA has various group types not categorized in AD. IPAHound consolidates all these entities into the IPAGroup class.
IPAComputer	Computer	Domain computers	Computer	IPAHound includes built-in queries to identify accounts with SSH and sudo access
IPAService	Service	Domain services	—	BloodHound lacks this entity. The close
